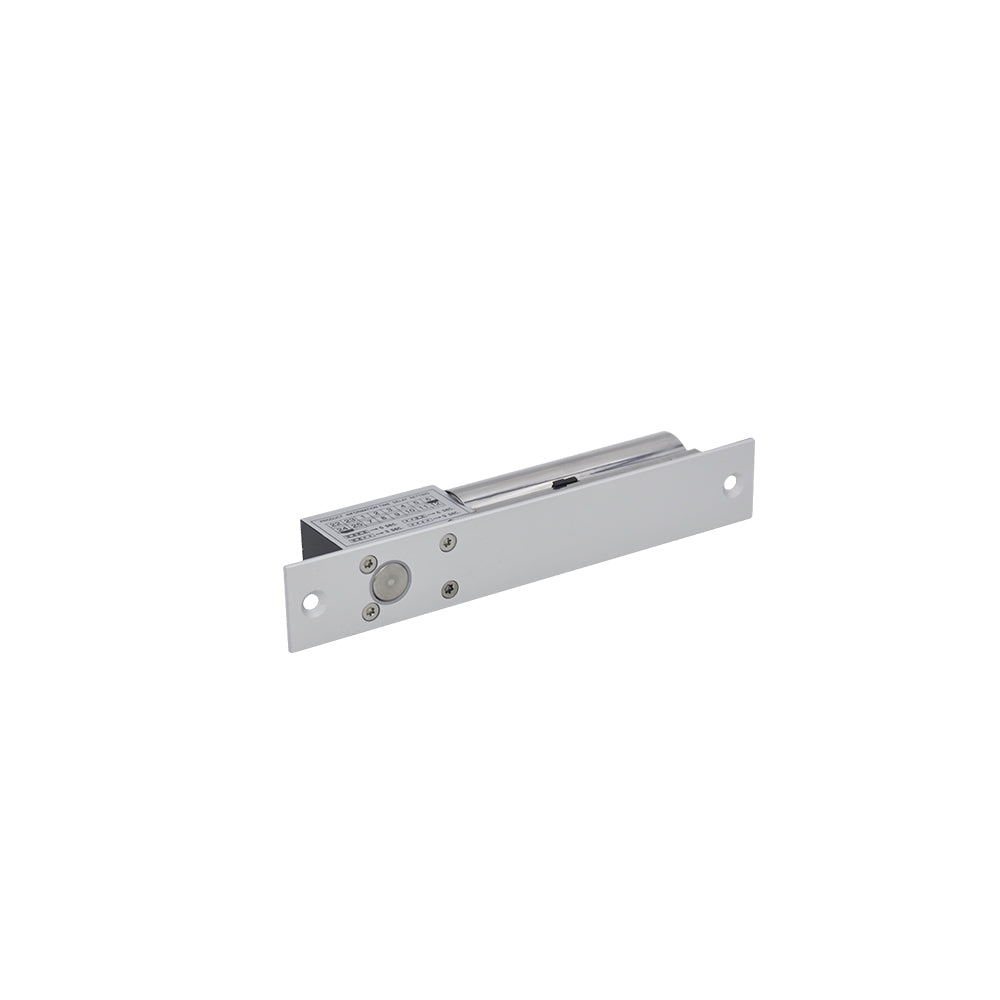

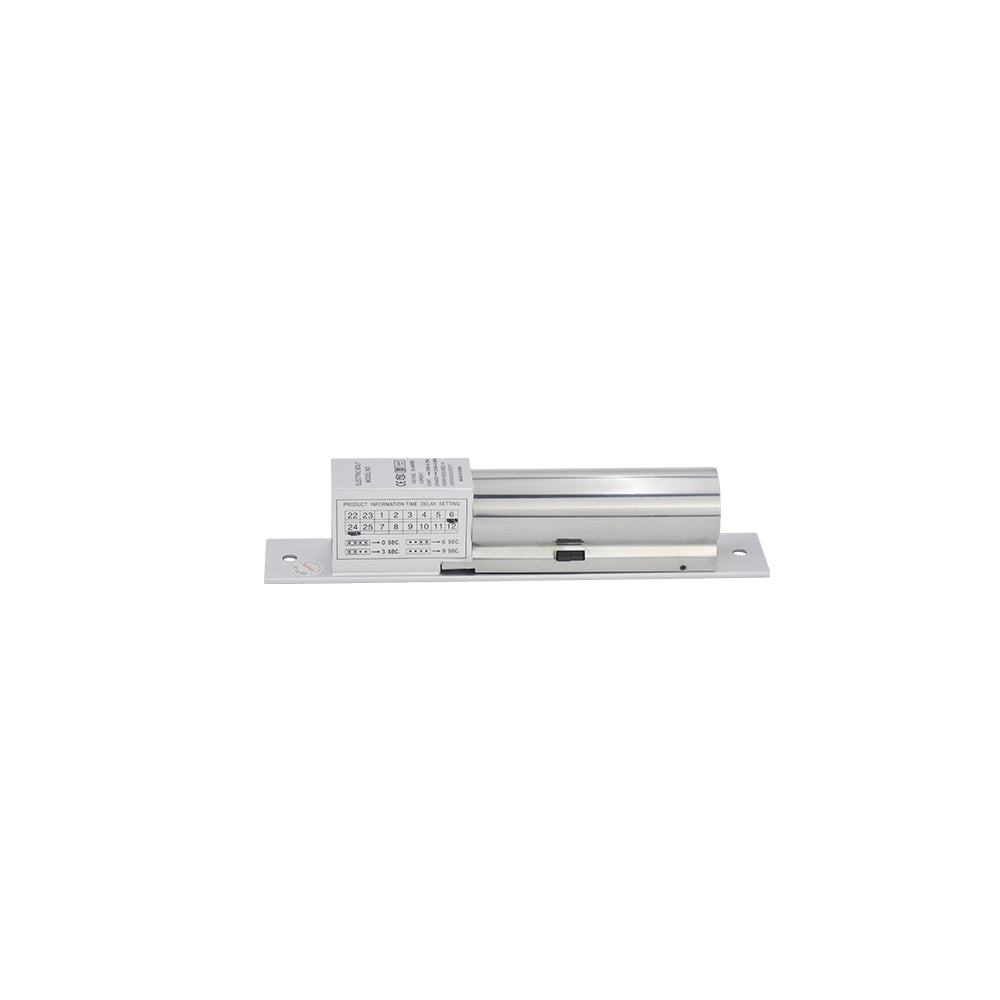

Five Core Low-Temperature Electric Bolt Lock

Model: MZ-205F
• Lock body size: 205Lx34Wx41.5H mm
• Shortboard size: 90Lx25Wx1.5H mm
• Working voltage: DC12V+10% range
• Starting current: 900mA (at the moment of starting)
• Working current: 100mA (fully locked)
• Lock core strength: can withstand 800KG static pressure on the side
• Surface temperature: below ambient temperature by+20 ℃
• Magnetic distance of door gap: 8mm
• Applicable temperature: -10~+55 ℃ (14~131F)
• Applicable humidity: 0-90% relative humidity
• Net weight of the product: 0.54kg
• Signal feedback: With lock cylinder signal output NO, NC, COM
• Delay function: adjustable from 0/3/6/9 seconds
• Safety type: automatic unlocking upon power failure
• Optional bracket: MZ-01/MZ-01B/MZ-02
